Toshiba
Toshiba Digital Inverter Standard Duct RAV-HM561BTP-E
Toshiba Digital Inverter Standard Duct R
- Nominal cooling capacity
- 5.0 kW
- Nominal heating capacity
- 5.3 kW
- Power input (cooling)
- 1.83 kW
- Rating standard
- En 14825
- EER (standard condition)
- 2.73
- COP (heating)
- 3.27
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Technical Data
Capacity
| Nominal cooling capacity | 5.0 kW |
|---|---|
| Nominal heating capacity | 5.3 kW |
| Power input (cooling) | 1.83 kW |
| Rating standard | En 14825 |
Efficiency
| EER (standard condition) | 2.73 |
|---|---|
| COP (heating) | 3.27 |
| SEER (seasonal cooling) | 5.28 |
| SCOP (seasonal heating) | 4.08 |
| Energy class | A |
Refrigeration
| Refrigerant | R32 |
|---|---|
| Refrigerant charge | 0.9 kg |
| Compressor type | Rotary |
| Inverter compressor | Yes |
Refrigerant piping
| Liquid pipe diameter | 6.35 mm |
|---|---|
| Gas pipe diameter | 12.7 mm |
| Max pipe length | 30 m |
| Max height difference | 30 m |
| Pre-charged pipe length | 20 m |

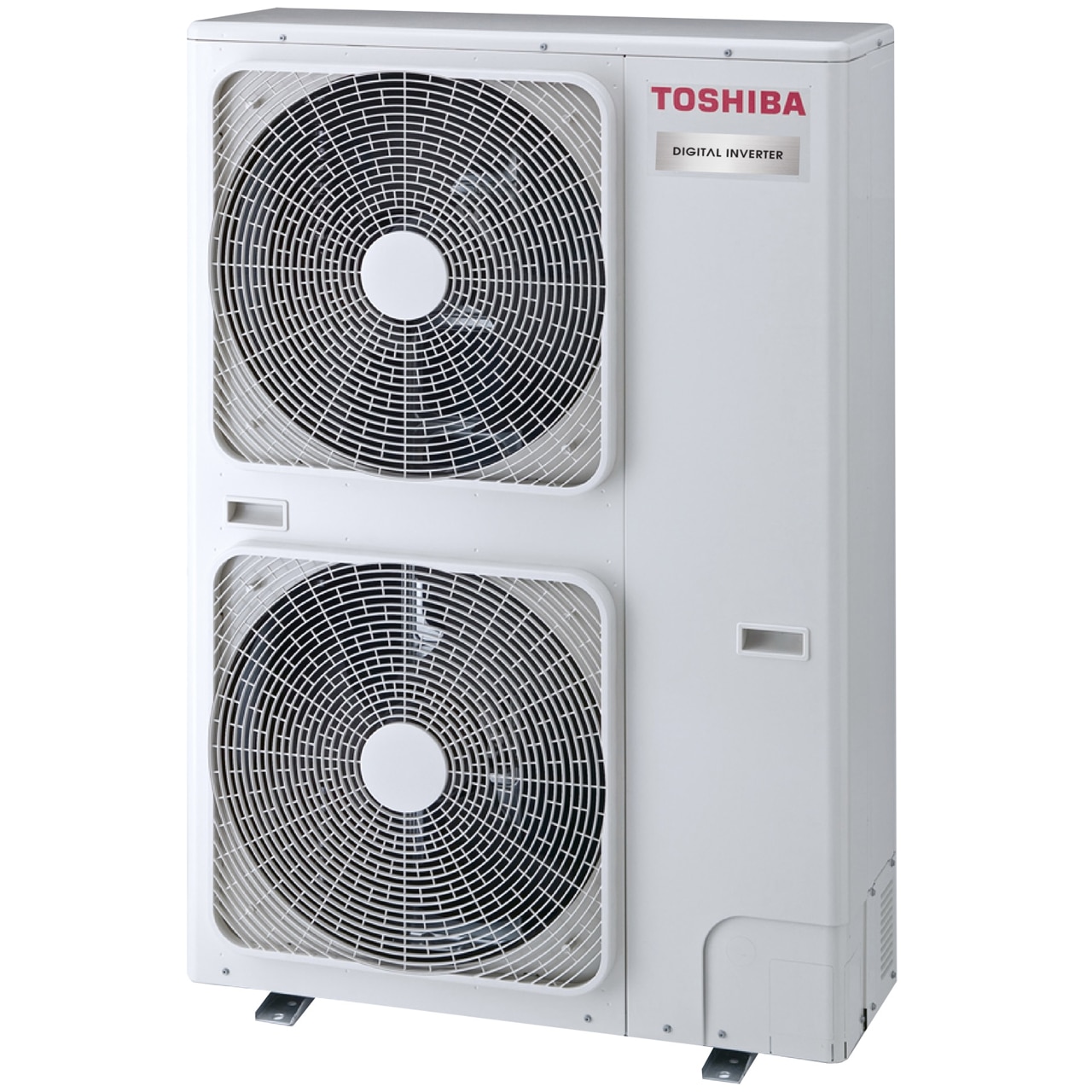

Outdoor unit (split sets)
| Outdoor unit model code | RAV-GM561ATP-E1 |
|---|---|
| Outdoor sound pressure | 46 dB(A) |
| Outdoor unit height | 550 mm |
| Outdoor unit width | 780 mm |
| Outdoor unit depth | 290 mm |
| Outdoor unit weight | 40 kg |
Indoor unit
| Indoor unit type | Ducted medium static |
|---|---|
| Sound pressure (low / quiet mode) | 25 dB(A) |
| Drain pump included | Yes |
| Fresh-air intake | Yes |
Air performance
| Airflow (nominal / high) | 800 m³/h |
|---|---|
| Airflow (low) | 480 m³/h |
| External static pressure | 30 Pa |
Electrical
| Power supply | Single |
|---|---|
| Frequency | 50 |
Acoustics
| Sound pressure | 33 dB(A) |
|---|
Operating envelope
| Min outdoor temperature (cooling) | -15 °C |
|---|---|
| Max outdoor temperature (cooling) | 46 °C |
| Min outdoor temperature (heating) | -15 °C |
Physical
| Height | 275 mm |
|---|---|
| Width | 700 mm |
| Depth | 750 mm |
| Weight | 23 kg |
| Mounting | Ceiling recessed |
Suitability
| Used in / applications | Office, Retail, Residential villa, Hotel hospitality |
|---|
Commercial
| Warranty | 2 years |
|---|---|
| Country of origin | Japan |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
PRODUCT-SPECIFIC SUPPORT
Ask Henrik about the Toshiba Digital Inverter Standard Duct RAV-HM561BTP-E.
