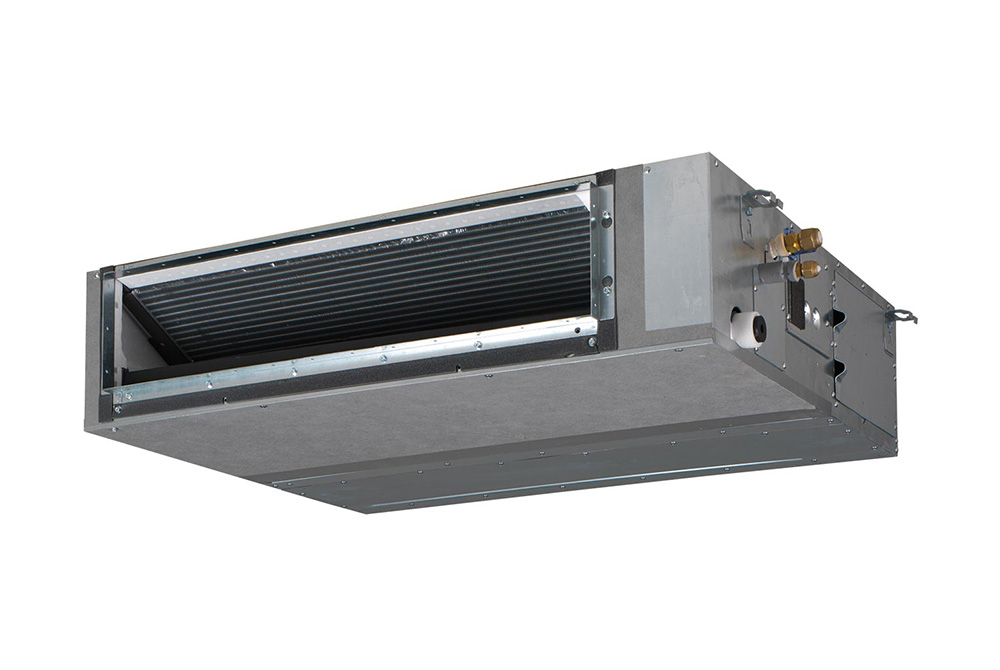

Daikin Sky Air FBA A FBA100A2VEB
Split — ducted concealed
- Nominal cooling capacity
- 9.5 kW
- Nominal heating capacity
- 10.8 kW
- SEER (seasonal cooling)
- 5.83
- Refrigerant
- R32
- Refrigerant charge
- 2.6 kg
- Refrigerant GWP
- 675
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview
FBA100A2VEB concealed ceiling unit with RZASG100M7V1B outdoor unit: 9.5 kW nominal cooling, 10.8 kW heating, SEER 5.83, nominal ESP 40 Pa.
Documents
Technical Data
Capacity
| Nominal cooling capacity | 9.5 kW |
|---|---|
| Nominal heating capacity | 10.8 kW |
Efficiency
| SEER (seasonal cooling) | 5.83 |
|---|
Refrigeration
| Refrigerant | R32 |
|---|---|
| Refrigerant charge | 2.6 kg |
| Refrigerant GWP | 675 |
| Inverter compressor | Yes |
Refrigerant piping
| Liquid pipe diameter | 9.52 mm |
|---|---|
| Gas pipe diameter | 15.9 mm |
| Max pipe length | 50 m |
| Max height difference | 30 m |
| Pre-charged pipe length | 30 m |
Outdoor unit (split sets)
| Outdoor unit model code | RZASG100M7V1B |
|---|---|
| Outdoor sound pressure | 53 dB(A) |
| Outdoor unit height | 990 mm |
| Outdoor unit width | 940 mm |
| Outdoor unit depth | 320 mm |
| Outdoor unit weight | 70 kg |
Indoor unit
| Indoor unit type | Ducted medium static |
|---|---|
| Sound pressure (low / quiet mode) | 30 dB(A) |
| Drain pump included | Yes |
Air performance
| Airflow (nominal / high) | 1740 m³/h |
|---|---|
| Airflow (low) | 1380 m³/h |
| External static pressure | 40 Pa |
| Max static pressure | 150 Pa |
Electrical
| Power supply | Single |
|---|---|
| Frequency | 50 |
Acoustics
| Sound pressure | 34 dB(A) |
|---|---|
| Sound power | 58 dB(A) |
Operating envelope
| Min outdoor temperature (cooling) | -15 °C |
|---|---|
| Max outdoor temperature (cooling) | 46 °C |
| Min outdoor temperature (heating) | -15 °C |
Physical
| Height | 245 mm |
|---|---|
| Width | 1400 mm |
| Depth | 800 mm |
| Weight | 46 kg |
| Mounting | Ceiling recessed |
Suitability
| Used in / applications | Residential villa, Office, Retail, Hotel hospitality |
|---|
Commercial
| Warranty | 2 years |
|---|---|
| Country of origin | Japan |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
