Gree All Match Floor Ceiling R32 FLR12HP230V1R32AH
Gree All Match Floor Ceiling R32 FLR12HP
- Nominal cooling capacity
- 3.5 kW
- Nominal heating capacity
- 3.5 kW
- Rating standard
- Ahri 210 240
- EER (standard condition)
- 13.0
- SEER (seasonal cooling)
- 23.0
- Refrigerant
- R32
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview
12000 BTU/H Floor Ceiling Heat Pump System: FLR12HP230V1R32AH indoor unit with VIR12HP230V1R32AO outdoor unit; SEER2 23 / EER2 13, AHRI certificate 215413815.
Documents
Technical Data
Capacity
| Nominal cooling capacity | 3.5 kW |
|---|---|
| Nominal heating capacity | 3.5 kW |
| Rating standard | Ahri 210 240 |
Efficiency
| EER (standard condition) | 13.0 |
|---|---|
| SEER (seasonal cooling) | 23.0 |
Refrigeration
| Refrigerant | R32 |
|---|---|
| Refrigerant charge | 0.8 kg |
| Compressor type | Rotary |
| Inverter compressor | Yes |
Refrigerant piping
| Liquid pipe diameter | 6.35 mm |
|---|---|
| Gas pipe diameter | 9.52 mm |
| Max pipe length | 20.1 m |
| Max height difference | 12.2 m |
| Pre-charged pipe length | 7.6 m |

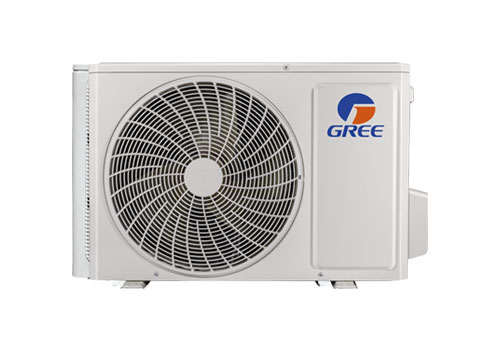

Outdoor unit (split sets)
| Outdoor unit model code | VIR12HP230V1R32AO |
|---|---|
| Outdoor sound pressure | 52 dB(A) |
| Outdoor unit height | 555 mm |
| Outdoor unit width | 802 mm |
| Outdoor unit depth | 350 mm |
| Outdoor unit weight | 30.5 kg |
Indoor unit
| Indoor unit type | Under ceiling |
|---|---|
| Sound pressure (low / quiet mode) | 25 dB(A) |
| Fresh-air intake | No |
Air performance
| Airflow (nominal / high) | 700 m³/h |
|---|---|
| Airflow (low) | 420 m³/h |
Electrical
| Nominal voltage | 230 V |
|---|---|
| Power supply | Single |
| Frequency | 60 |
| Rated current | 7.0 A |
| Minimum circuit ampacity (MCA) | 10.0 A |
| Max overcurrent protection (MOCP) | 15.0 A |
Acoustics
| Sound pressure | 40 dB(A) |
|---|
Operating envelope
| Min outdoor temperature (cooling) | -29 °C |
|---|---|
| Max outdoor temperature (cooling) | 50 °C |
| Min outdoor temperature (heating) | -30 °C |
Physical
| Height | 665 mm |
|---|---|
| Width | 870 mm |
| Depth | 235 mm |
| Weight | 25.0 kg |
Compliance & certifications
| Certifications | Ahri certified, Etl |
|---|
Suitability
| Used in / applications | Office, Retail, Restaurant |
|---|
Commercial
| Warranty | 2 years |
|---|---|
| Country of origin | China |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
PRODUCT-SPECIFIC SUPPORT
Ask Henrik about the Gree All Match Floor Ceiling R32 FLR12HP230V1R32AH.
