Camfil
Camfil Hi Flo 2550 592x592x600-8
Air filter
- Filter class
- M6
- Filter type
- Bag
- Rated airflow
- 3400 m³/h
- Filter depth
- 600 mm
- Initial pressure drop
- 60 Pa
- Face width
- 592 mm
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

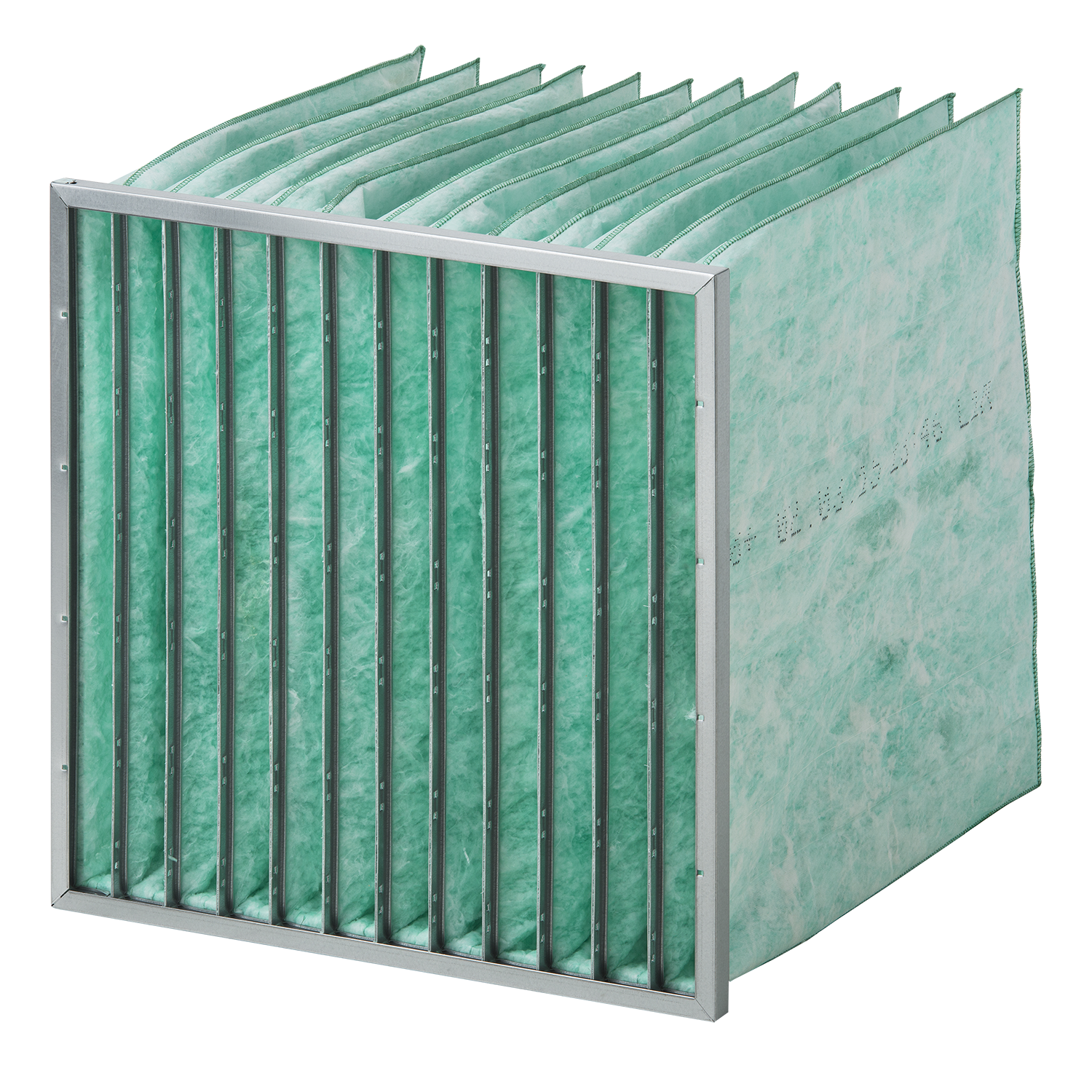

Hi-Flo bag filter 2550 592x592x600-8, ISO 16890 ePM2,5 50% (EN 779 M6), 592x592x600 mm with 8 glass-fibre bags: 3,400 m³/h at 60 Pa initial pressure drop, 6 m² media, 2.9 kg, galvanised steel frame.
Documents
Technical Data
Filtration
| Filter class | M6 |
|---|---|
| Filter type | Bag |
Filter
| Rated airflow | 3400 m³/h |
|---|---|
| Filter depth | 600 mm |
| Initial pressure drop | 60 Pa |
Air distribution
| Face width | 592 mm |
|---|---|
| Face height | 592 mm |
Physical
| Weight | 2.9 kg |
|---|---|
| Casing material | Galvanised steel |
Compliance & certifications
| Certifications | Epd |
|---|
Suitability
| Used in / applications | Office, Retail, Hotel hospitality, Education, Healthcare |
|---|
Commercial
| Country of origin | Sweden |
|---|
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
