Camfil
Camfil 30/30 1050 289x595x46
Air filter
- Filter type
- Panel
- Rated airflow
- 1700 m³/h
- Filter depth
- 46 mm
- Initial pressure drop
- 70 Pa
- Face width
- 289 mm
- Face height
- 595 mm
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

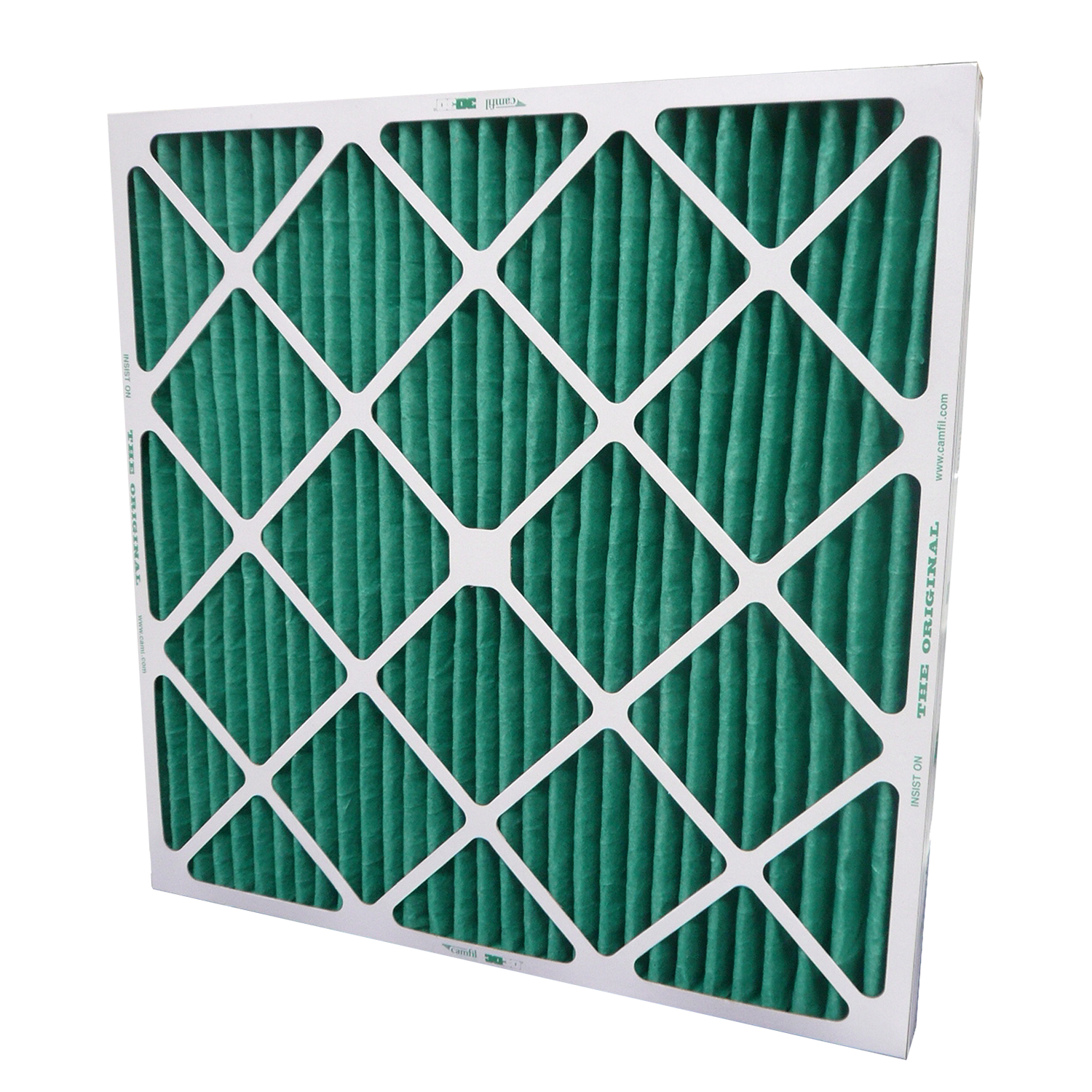

30/30 pleated panel prefilter 1050 289x595x46, ISO 16890 ePM10 50%, 289x595x46 mm: 1,700 m³/h at 70 Pa initial pressure drop, 0.8 m² synthetic media, 0.4 kg, water-resistant cardboard frame, max 90 °C.
Documents
Technical Data
Filtration
| Filter type | Panel |
|---|
Filter
| Rated airflow | 1700 m³/h |
|---|---|
| Filter depth | 46 mm |
| Initial pressure drop | 70 Pa |
Air distribution
| Face width | 289 mm |
|---|---|
| Face height | 595 mm |
Physical
| Weight | 0.4 kg |
|---|
Suitability
| Used in / applications | Office, Retail, Hotel hospitality, Education, Healthcare |
|---|
Commercial
| Country of origin | Sweden |
|---|
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
