Hitachi air365 Max RAS-080HNCCLI

Hitachi

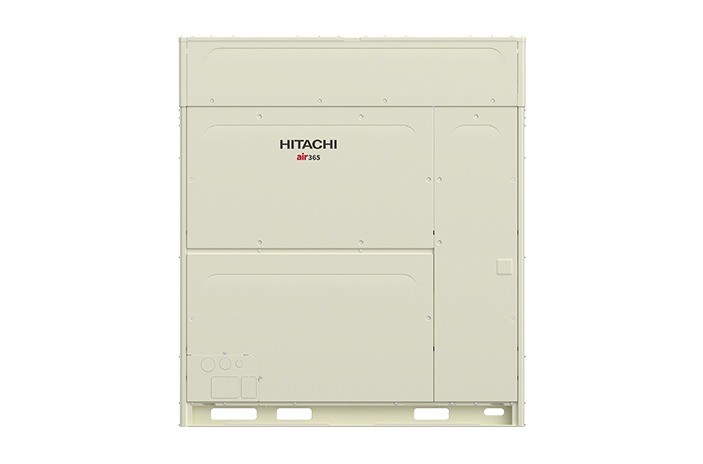

Hitachi air365 Max RAS-080HNCCLI

VRF / VRV outdoor unit

System family
hitachi_air365_max_r410a
Nominal cooling capacity
22.4 kW
Nominal heating capacity
25.0 kW
Refrigerant
R410A
Compressor type
Scroll
Inverter compressor
Yes
AvailabilitySpecial order· Lead time 7 weeks
Ask Henrik About This UnitGet Budget Pricing

Budget prices and project quotations come from Henrik and our regional teams.

Documents

Technical Data

Identity

System familyhitachi_air365_max_r410a

Capacity

Nominal cooling capacity22.4 kW
Nominal heating capacity25.0 kW

Refrigeration

RefrigerantR410A
Compressor typeScroll
Inverter compressorYes

Refrigerant piping

Liquid pipe diameter9.52 mm
Gas pipe diameter19.05 mm
Max total pipe length1000 m

VRF system

Pipe systemTwo pipe heat pump
Capacity index224
Outdoor unit size8 HP
Max connectable indoor units20
Min connection ratio50 %
Max connection ratio200 %

Electrical

Power supplyThree
Frequency50

Acoustics

Sound pressure52 dB(A)

Operating envelope

Min outdoor temperature (cooling)-5 °C
Max outdoor temperature (cooling)52 °C
Min outdoor temperature (heating)-25 °C

Physical

Height1805 mm
Width975 mm
Depth775 mm
Weight207 kg

Suitability

Used in / applicationsOffice, Hotel hospitality, Retail, Healthcare, Education, High rise

Commercial

Warranty2 years
Country of originJapan

Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
