Systemair
Systemair MUB 062 560EC Multibox
Fan
- Airflow (nominal / high)
- 10861 m³/h
- Fan motor
- Ec
- Fan type
- Box fan
- Impeller diameter
- 560 mm
- Max air temperature (continuous)
- 60 °C
- Speed control
- Ec 0 10v
AvailabilityLimited stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

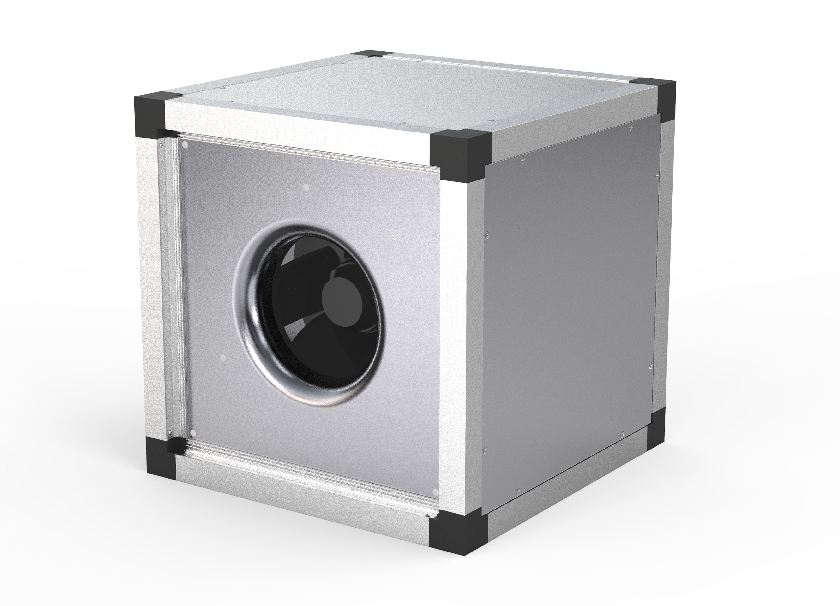

MUB 062 560EC Multibox insulated box fan with Ø560 mm backward-curved impeller and EC motor: max. 10,861 m³/h with 90° discharge (max. 9,897 m³/h straight-through), 2,662 W, 3.91 A at 400 V 3~ 50/60 Hz, sound power 65 dB(A), transported air up to 60 °C, IP55 motor, 83 kg.
Documents
Technical Data
Air performance
| Airflow (nominal / high) | 10861 m³/h |
|---|---|
| Fan motor | Ec |
Fan
| Fan type | Box fan |
|---|---|
| Impeller diameter | 560 mm |
| Max air temperature (continuous) | 60 °C |
| Speed control | Ec 0 10v |
Electrical
| Nominal voltage | 400 V |
|---|---|
| Power supply | Three |
| Frequency | 50 60 |
| Rated power | 2662 W |
| Rated current | 3.91 A |
| IP rating | IP55 |
Acoustics
| Sound power | 65 dB(A) |
|---|
Physical
| Weight | 83 kg |
|---|
Compliance & certifications
| Certifications | Erp ecodesign, Amca, Epd |
|---|
Suitability
| Used in / applications | Office, Retail, Warehouse industrial, Rooftop outdoor, Coastal |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Sweden |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
