Systemair MUB 025 355EC Multibox
Fan
- Airflow (nominal / high)
- 4168 m³/h
- Fan motor
- Ec
- Fan type
- Box fan
- Impeller diameter
- 355 mm
- Max air temperature (continuous)
- 60 °C
- Speed control
- Ec 0 10v
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

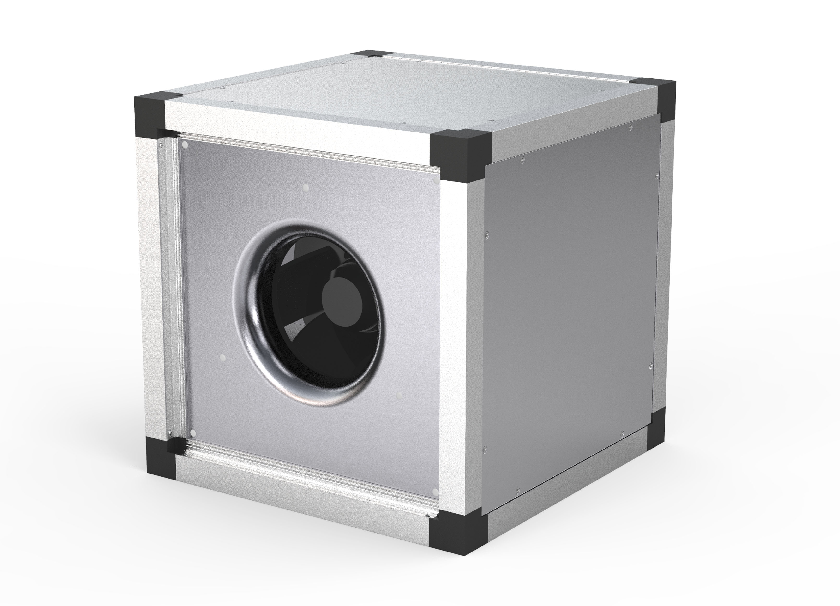

MUB 025 355EC Multibox insulated box fan with Ø355 mm backward-curved impeller and EC motor: max. 4,168 m³/h with 90° discharge (max. 3,453 m³/h straight-through), 526 W, 2.33 A at 230 V 1~ 50/60 Hz, sound power 47 dB(A), transported air up to 60 °C, IP55 motor, 30 kg.
Documents
Technical Data
Air performance
| Airflow (nominal / high) | 4168 m³/h |
|---|---|
| Fan motor | Ec |
Fan
| Fan type | Box fan |
|---|---|
| Impeller diameter | 355 mm |
| Max air temperature (continuous) | 60 °C |
| Speed control | Ec 0 10v |
Electrical
| Nominal voltage | 230 V |
|---|---|
| Power supply | Single |
| Frequency | 50 60 |
| Rated power | 526 W |
| Rated current | 2.33 A |
| IP rating | IP55 |
Acoustics
| Sound power | 47 dB(A) |
|---|
Physical
| Weight | 30 kg |
|---|
Compliance & certifications
| Certifications | Amca, Epd |
|---|
Suitability
| Used in / applications | Office, Retail, Warehouse industrial, Rooftop outdoor, Coastal |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Sweden |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
