Systemair
Systemair Ke/kt KT 60-30-4
Fan
- Airflow (nominal / high)
- 3827 m³/h
- Fan motor
- Ac single speed
- Fan type
- Inline duct
- Max air temperature (continuous)
- 61 °C
- Speed control
- Voltage controller
- Nominal voltage
- 400 V
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

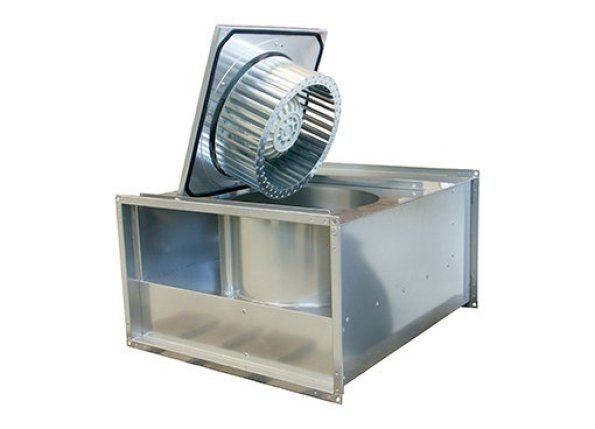

KT 60-30-4 rectangular duct fan for 600 x 300 mm (W x H) ducts with forward-curved impeller and 4-pole AC external rotor motor: max. 3,827 m³/h, 1,619 W, 2.71 A at 400 V 3~ 50 Hz, 56 dB(A) sound pressure at 3 m (20 m² Sabin), transported air up to 61 °C, IP54 motor, 30.6 kg.
Documents
Technical Data
Air performance
| Airflow (nominal / high) | 3827 m³/h |
|---|---|
| Fan motor | Ac single speed |
Fan
| Fan type | Inline duct |
|---|---|
| Max air temperature (continuous) | 61 °C |
| Speed control | Voltage controller |
Electrical
| Nominal voltage | 400 V |
|---|---|
| Power supply | Three |
| Frequency | 50 |
| Rated power | 1619 W |
| Rated current | 2.71 A |
| IP rating | IP54 |
Acoustics
| Sound pressure | 56 dB(A) |
|---|---|
| Sound power | 58 dB(A) |
Physical
| Weight | 30.6 kg |
|---|---|
| Casing material | Galvanised steel |
| Mounting | Duct inline |
Compliance & certifications
| Certifications | Erp ecodesign |
|---|
Suitability
| Used in / applications | Office, Retail, Warehouse industrial |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Sweden |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
