Systemair
Systemair KBR 355EC
Fan
- Airflow (nominal / high)
- 3934 m³/h
- Fan motor
- Ec
- Fan type
- Box fan
- Duct connection diameter
- 355 mm
- Max air temperature (continuous)
- 120 °C
- Speed control
- Ec 0 10v
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

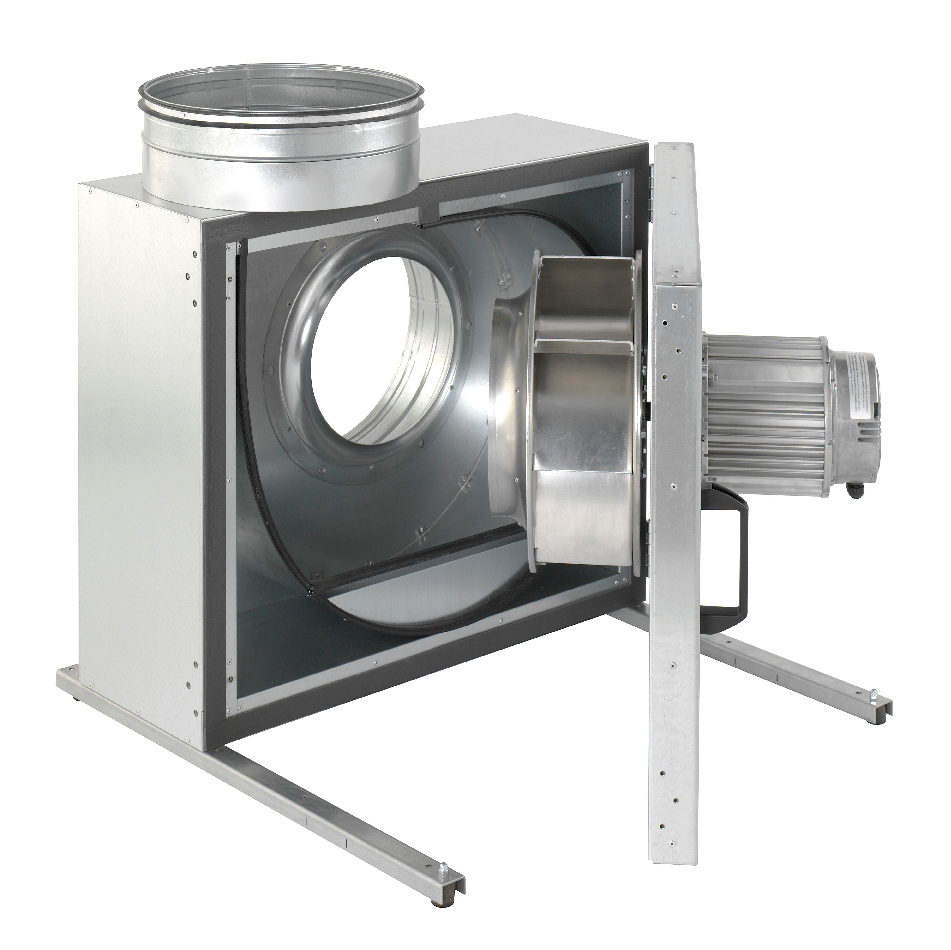

KBR 355EC insulated box fan for Ø355 mm ducts with EC motor: max. 3,934 m³/h, 504 W, 4.1 A at 230 V 1~ 50/60 Hz, continuous transported air up to 120 °C, IP55 motor, 76.5 kg.
Documents
Technical Data
Air performance
| Airflow (nominal / high) | 3934 m³/h |
|---|---|
| Fan motor | Ec |
Fan
| Fan type | Box fan |
|---|---|
| Duct connection diameter | 355 mm |
| Max air temperature (continuous) | 120 °C |
| Speed control | Ec 0 10v |
Electrical
| Nominal voltage | 230 V |
|---|---|
| Power supply | Single |
| Frequency | 50 60 |
| Rated power | 504 W |
| Rated current | 4.1 A |
| IP rating | IP55 |
Physical
| Weight | 76.5 kg |
|---|---|
| Casing material | Galvanised steel |
Compliance & certifications
| Certifications | Epd |
|---|
Suitability
| Used in / applications | Kitchen exhaust, Restaurant, Hotel hospitality |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Sweden |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
