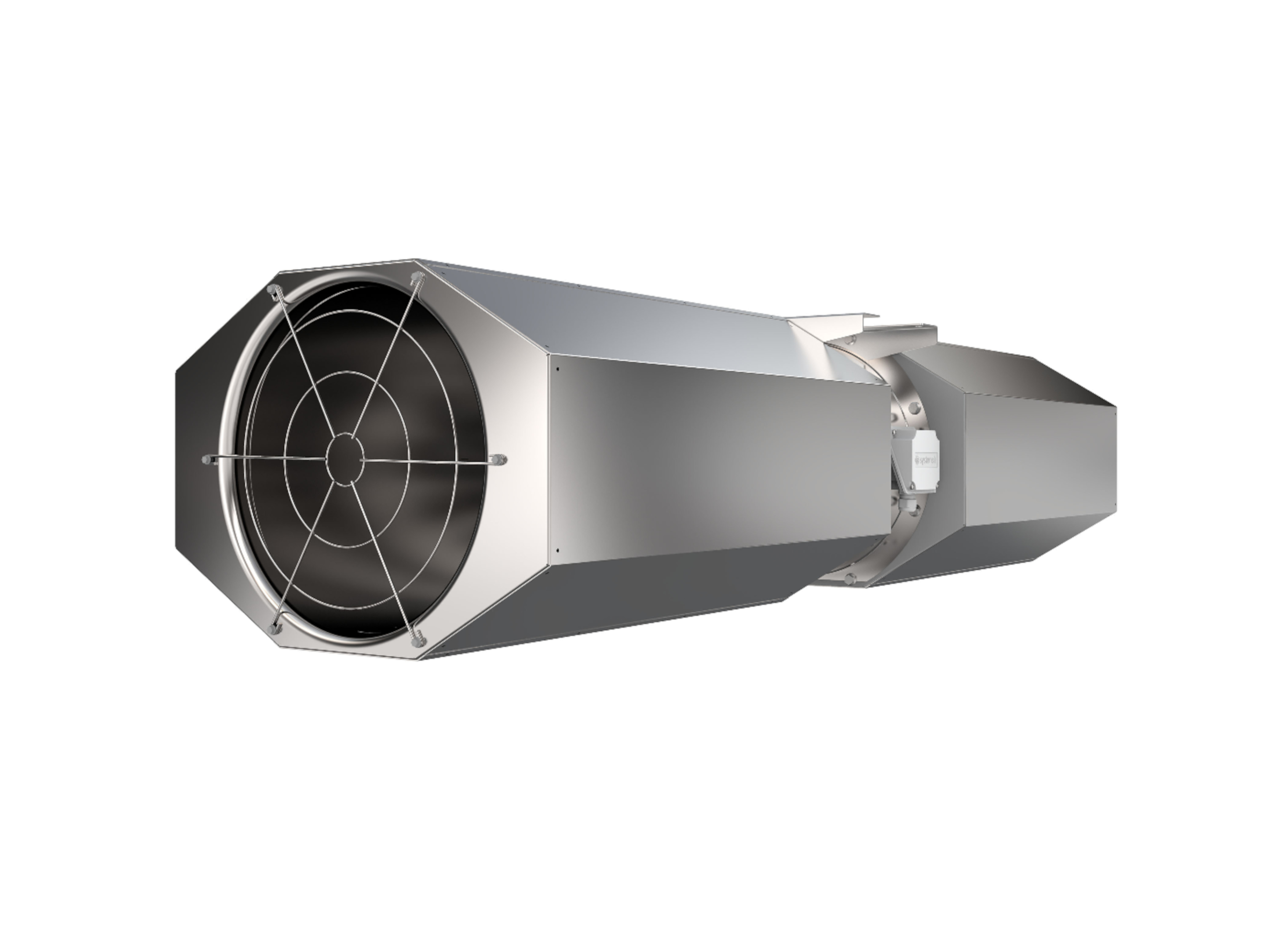

Systemair AJ8 315-2/4(B)-TR
Fan
- Airflow (nominal / high)
- 4680 m³/h
- Airflow (low)
- 2160 m³/h
- Fan motor
- Ac multi speed
- Fan type
- Jet fan
- Smoke extract rating (EN 12101-3)
- F300 60
- Speed control
- Multi speed
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview
AJ8 315-2/4(B)-TR axial jet fan, size 315 mm, with reversible impeller and 2/4-pole motor: max. 4,680 m³/h and max. 26 N thrust at 2-pole speed (800 W, 1.53 A at 400 V 3~ 50 Hz, 56 dB(A) at 3 m free field), max. 2,160 m³/h and max. 6 N at 4-pole speed (200 W); EN 12101-3 declaration of performance classification F300 (60) to EN 13501-4, tested 300 °C / 2 h, IP55 motor, 62.5 kg.
Documents
Technical Data
Air performance
| Airflow (nominal / high) | 4680 m³/h |
|---|---|
| Airflow (low) | 2160 m³/h |
| Fan motor | Ac multi speed |
Fan
| Fan type | Jet fan |
|---|---|
| Smoke extract rating (EN 12101-3) | F300 60 |
| Speed control | Multi speed |
Electrical
| Nominal voltage | 400 V |
|---|---|
| Power supply | Three |
| Frequency | 50 |
| Rated power | 800 W |
| Rated current | 1.53 A |
| IP rating | IP55 |
Acoustics
| Sound pressure | 56 dB(A) |
|---|
Physical
| Weight | 62.5 kg |
|---|---|
| Casing material | Galvanised steel |
| Mounting | Ceiling surface |
Compliance & certifications
| Certifications | En 12101 3 |
|---|
Suitability
| Used in / applications | Car park, Smoke control, Warehouse industrial |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Sweden |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
