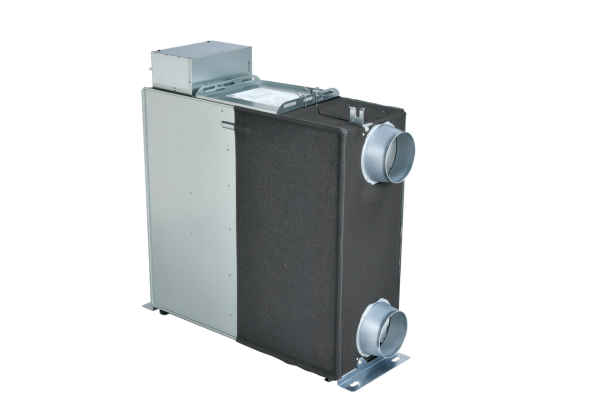

Mitsubishi Electric Lossnay LGH RVX3 E LGH-50RVX3-E
Mitsubishi Electric Lossnay LGH RVX3 E L
- Airflow (nominal / high)
- 500 m³/h
- Airflow (low)
- 125 m³/h
- External static pressure
- 150 Pa
- Specific fan power
- 1330 W/(m³/s)
- Heat recovery efficiency
- 70.5 %
- Filter class
- G4
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Technical Data
Air performance
| Airflow (nominal / high) | 500 m³/h |
|---|---|
| Airflow (low) | 125 m³/h |
| External static pressure | 150 Pa |
| Specific fan power | 1330 W/(m³/s) |
| Heat recovery efficiency | 70.5 % |
Filtration
| Filter class | G4 |
|---|
Electrical
| Frequency | 50 |
|---|---|
| Rated power | 185 W |
Acoustics
| Sound pressure | 35.0 dB(A) |
|---|
Physical
| Height | 331 mm |
|---|---|
| Width | 888 mm |
| Depth | 1016 mm |
| Weight | 33 kg |
Suitability
| Used in / applications | Office, Education, Healthcare, Hotel hospitality, Retail |
|---|
Commercial
| Warranty | 2 years |
|---|---|
| Country of origin | Japan |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
