Trox
Trox VDW-Q-Z-H/300×8
Air terminal (diffuser / grille / louvre)
- Neck size
- 158 mm
- Face width
- 310 mm
- Face height
- 310 mm
- Connection shape
- Round
- Airflow (min)
- 26 m³/h
- Airflow (max)
- 288 m³/h
AvailabilityOut of stock· Lead time 2 weeks
Budget prices and project quotations come from Henrik and our regional teams.
Overview

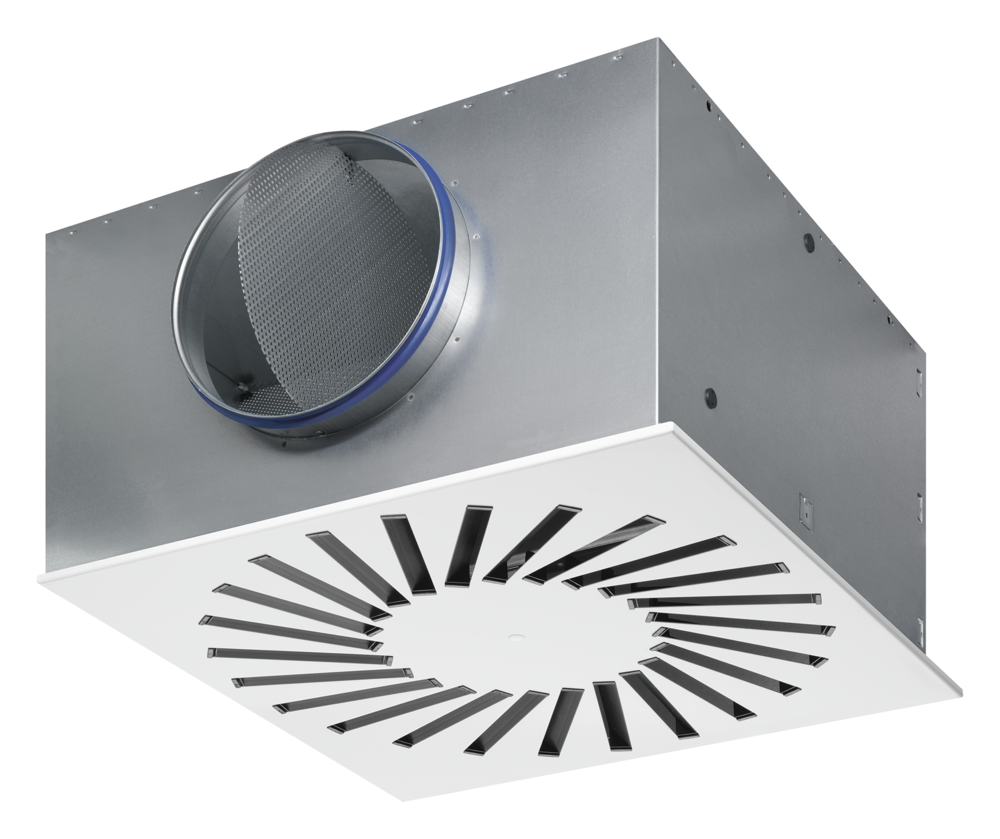

Square swirl diffuser for supply air, nominal size 300 × 8, with square plenum box and horizontal Ø158 mm spigot; quick sizing 26–288 m³/h, 288 m³/h at 87 Pa and 50 dB(A) with the damper blade at 0°; 3.7 kg.
Documents
Technical Data
Air distribution
| Neck size | 158 mm |
|---|---|
| Face width | 310 mm |
| Face height | 310 mm |
| Connection shape | Round |
| Airflow (min) | 26 m³/h |
| Airflow (max) | 288 m³/h |
| Material | Galvanised steel |
| Finish / colour | RAL 9010 pure white diffuser face, air control blades similar to RAL 9005 jet black |
Air terminal
| Terminal type | Swirl diffuser |
|---|
Physical
| Weight | 3.7 kg |
|---|---|
| Casing material | Galvanised steel |
| Mounting | Ceiling recessed |
Suitability
| Used in / applications | Office, Retail, Education, Hotel hospitality, Restaurant |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Germany |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
