Trox
Trox JZ-S/800×675
Damper
- Connection shape
- Rectangular
- Material
- Galvanised steel
- Damper type
- Volume control
- Weight
- 20 kg
- Casing material
- Galvanised steel
- Mounting
- Duct inline
AvailabilityIn stock· Lead time 2 days
Budget prices and project quotations come from Henrik and our regional teams.
Overview

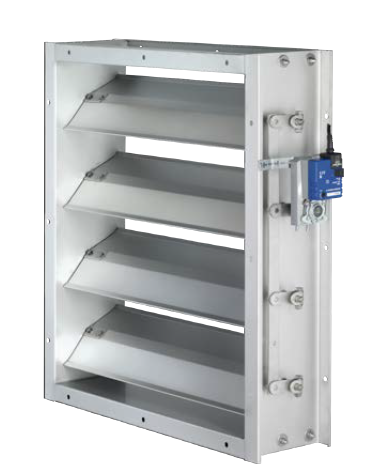

Multileaf damper with opposed action aerofoil blades, galvanised sheet steel with plastic bearings, nominal size 800 × 675 mm (width × height); free cross-sectional area 0.44 m², minimum torque 10 Nm, maximum differential pressure 2500 Pa with the damper closed, 20 kg.
Documents
Technical Data
Air distribution
| Connection shape | Rectangular |
|---|---|
| Material | Galvanised steel |
Damper
| Damper type | Volume control |
|---|
Physical
| Weight | 20 kg |
|---|---|
| Casing material | Galvanised steel |
| Mounting | Duct inline |
Suitability
| Used in / applications | Plant room, Office, Warehouse industrial |
|---|
Commercial
| Warranty | 1 years |
|---|---|
| Country of origin | Germany |
Data from the manufacturer's published documentation. Confirm selection data against the current datasheet before specification.
